TCS DCC - European Hardwire Adapter Board 21MTC board (FEMALE) one piece - SKU-1358

Single pack.

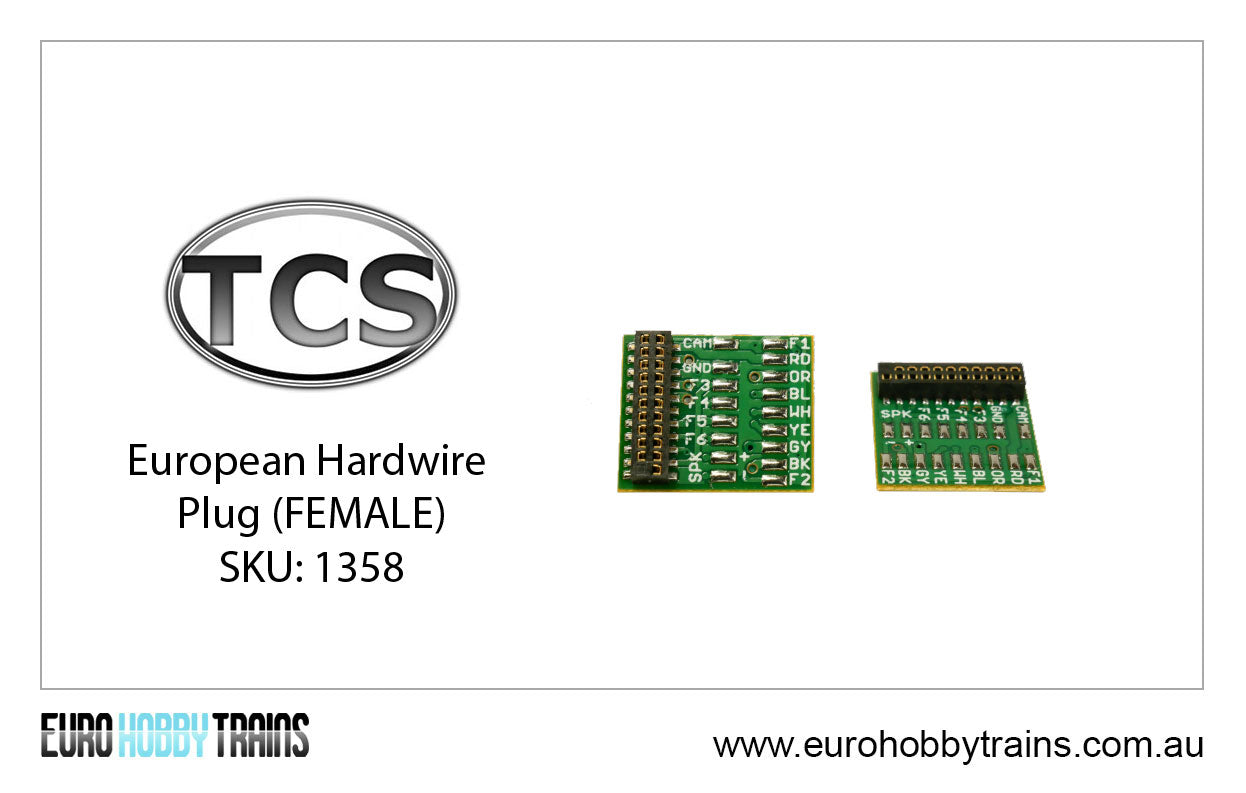

The 21-HW (female) is a circuit board with a 21-pin NEM660 (MTC21) socket and solder pads to connect wires. The female 21-pin socket may be used to adapt a harnessed decoder such as the WOW101 or T4 onto a 21-pin locomotive or motherboard.

To solder wires to the provided pads simply:

1. Tin each pad with a small amount of solder
2. Strip the end of each wire and tin it with a small amount of solder – Recommended Solder Practices
3. Solder the wires in order with their corresponding contacts

Each pad on the 21-HW is labelled. These pad labels are as follows (from left to right with pads facing you)

| Speaker (-) | Speaker(+) | Function 6 | Function 5 | Function 4 | Function 3 | Ground | CAM/Aux Input |

| Function 2 | Left Rail (Black) | Motor (-) (Grey) | Yellow (F0R) | White (F0F) | Blue (12V+) | Motor (+) (Orange) | Right Rail (Red) | Function 1 |

IMPORTANT NOTE (NEM660): The 21-HW adaptor does not feature output transistors on Functions 3-6. This conforms with the connector standard. The logic boosters for these functions will be included on the Motherboard (if supported) unless otherwise specified by the manufacturer.
