TCS DCC - DCC Starter System LT-50 Handheld - item LT-50

Throttle Dimensions:

17 × 5 × 2 cm

Display

4 × 2 cm, backlit LCD, 128x64 pixels, white LED

Communication Type(s)

LCC CAN-bus (RJ-45)

Communication Protocol(s)

Digital Command Control (DCC)

Layout Command Control (LCC)

RailCom®

Interface

Encoder Knob

Tactile Keypad

Integrated On-Screen Menu

Tethered (LCC)

Programmable Buttons

9

Power Source  - Australian socket

Wired; 15V, 36W (Included)

Supported Languages

English (US)

MORE DETAILS

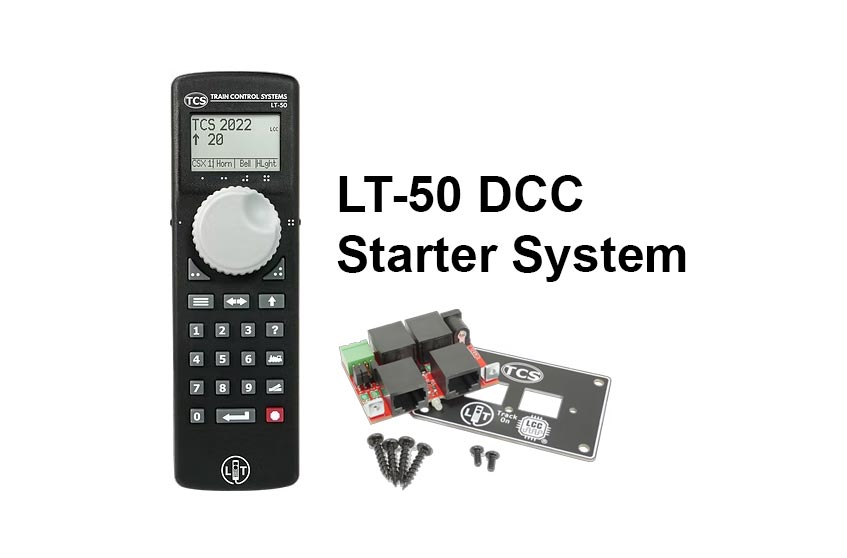

The LT-50 "Layout Throttle" is an intelligently-designed wired LCC throttle with a built-in command station. Ergonomically designed to comfortably fit your hand and provide easy access to all of the buttons, the LT-50 is the perfect DCC command station for newcomers, or layout operators and builders looking for a highly-capable, portable command station and throttle. Like the CS-105, the LT-50 is overflowing with features, including RailCom® - but there's so much more it can do!

The LT-50 Layout Throttle from TCS is the new standard in utility for model railroads. This system brings a new level of operational convenience, as well as a wide range of new features compared to the competition. Instead of spending time with your head in a manual trying to understand your throttle, the intuitive interface of the LT-50 allows you to focus on the important things - operating and enjoying your trains! We are confident that the LT-50 will quickly become your favorite throttle to use.

The LT-50 features an encoder-style knob for easy menu navigation as well as speed control.

Included in the package: 1x 15V power supply with AUS socket, a single LT-50 fascia panel and fascia cover plate, screws for mounting the fascia board and plate, detachable track power connector, and a single RJ-45 cable.

Large, Full-text Screen
4 × 2 cm LCD screen with white backlight. Brightness is entirely adjustable for a variety of operating conditions.

Programmable Buttons
The encoder button, two buttons on the face of the throttle, as well as two multi-position switches on the side (9 total) can be reassigned to control many functions. Examples include dynamic braking, manual notching, and more! Higher-numbered functions are now a simple button press or switch flick away!

Multiple Connection Modes
The LT-50 can be used as a standalone command station, but if connected into an LCC network, the LT-50 will act as a normal LCC throttle. For operators who prefer a wired throttle, the LT-50 can connect to a CS-105 to offer that wired throttle experience.

Integrated Consisting System
Consisting doesn’t have to be difficult, intimidating, or complicated! The LT-50 features a simple consisting interface where users can make, modify, and break up consists in mere seconds.

Yard Mode
Yard Mode is an innovative, TCS exclusive feature designed for switching operations and control. Perfect for spicing up repetitive yard moves!

Full-Text Menus
Menus present all options in full words and phrases. No guess work or manuals needed!

Help Text
Use the [?] button on the keypad in any menu to access help text for that menu item. The throttle will display a simple description of the highlighted option. Help is always one button press away!

Flashlight
The LT-50 unit comes equipped with two bright white LED's that can be activated at any time - handy for those dropped screws, lost detail parts, decoupling, and ventures under dark, cavernous benchwork.
