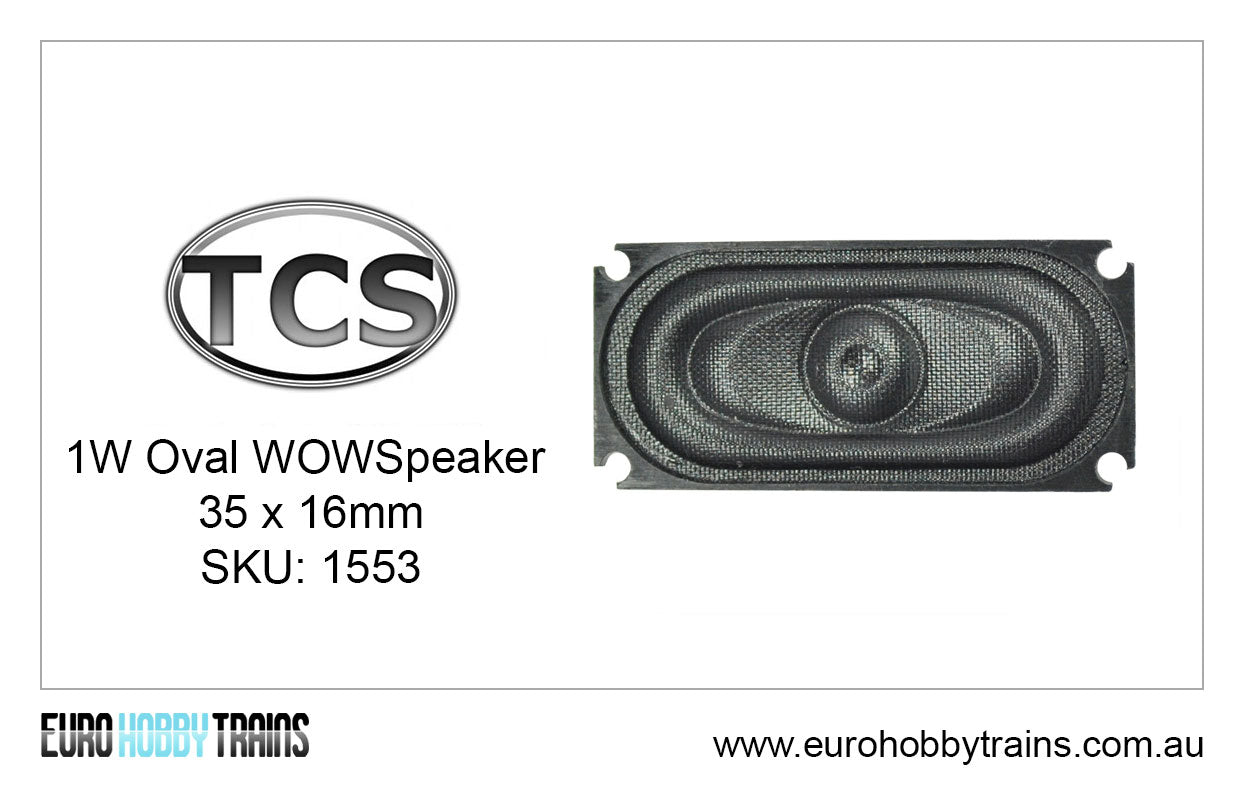

TCS DCC - 35x16mm Oval WOWSpeaker 1W SKU-1553

Model: SKU-1553

This medium sized oval WOW Speaker is a perfect fit for many diesel locomotives with speaker enclosures built into the frame. Producing sounds with the clarity and volume of a much larger speaker, these 35mm x 16mm speakers are perfect for diesel installations that still require BIG sound. Pick one up and find out how great your WOWSound can really sound!

Dimensions: 35mm long x 16mm wide x 5.5mm deep

Power Rating: 1W (Typical), 2W (Peak)
DC Impedance: 8 Ω ± 15%, at 2,000 Hz, 1.0 V
Resonant Frequency: 670 Hz ± 20%, at 1.0 V
Operating Temperature: -20ºC to +60ºC
Effective Frequency Band: 670 Hz to 20,000 Hz
Sound Pressure Level: 83 ± 3.0 dB (A), at 1.0 W, 0.5 m (Average: 600, 800, 1,000, 1,200 Hz)
