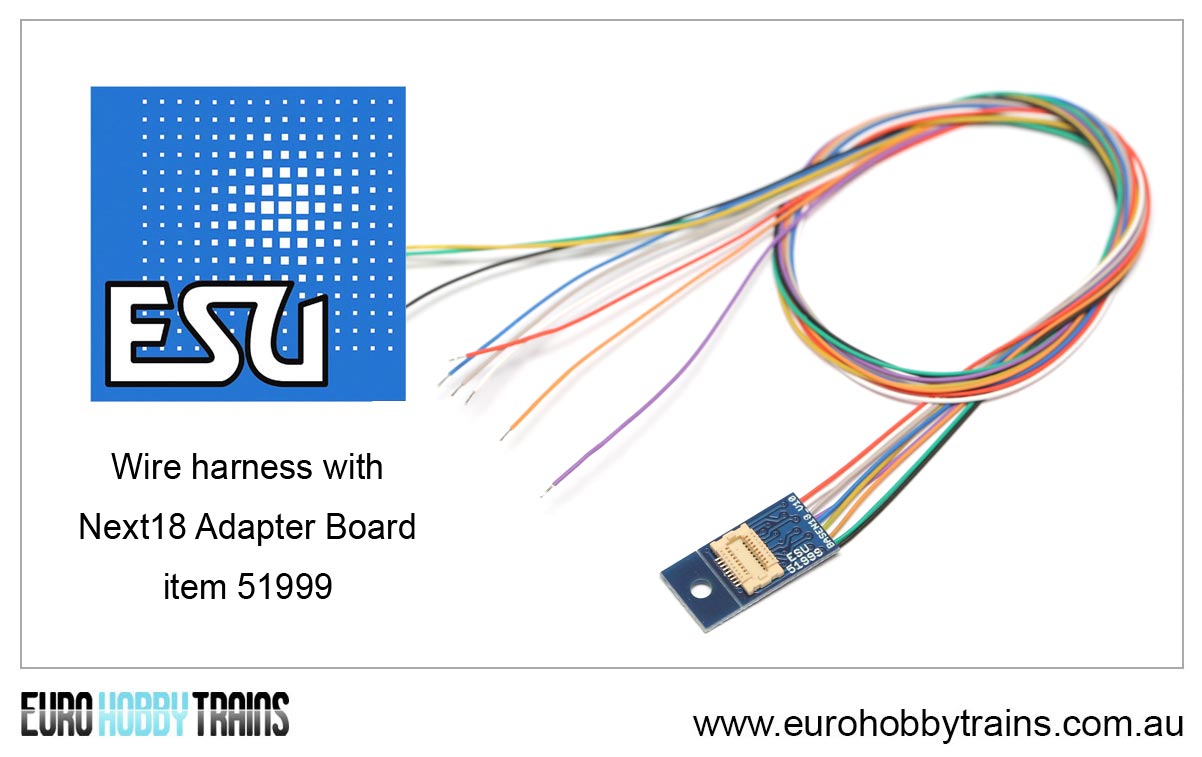

ESU - Wire harness with Next18 Adapter Board 1 - item 51999

The Next18 adapter board is suitable if you want to digitize a very small locomotive without a digital interface, but do not want to freely wire the decoder. With dimensions of only 13.0 mm x 9.0 mm, the circuit board is kept extremely small and is also equipped with a fastening strap that can be broken off. Power amplifiers (approx. 180mA each) are on board for the AUX3 and AUX4 functions, which are designed as logic outputs on the decoder according to the standard. So a total of up to 6 outputs can be used. Connection cables already soldered with a length of approx. 20 cm for the most important contacts ensure easy handling and wiring.

Dimensions: Length 13.0 mm x 9.0 mm (With attachment tongue: 18.0 mm x 9.0 mm).
