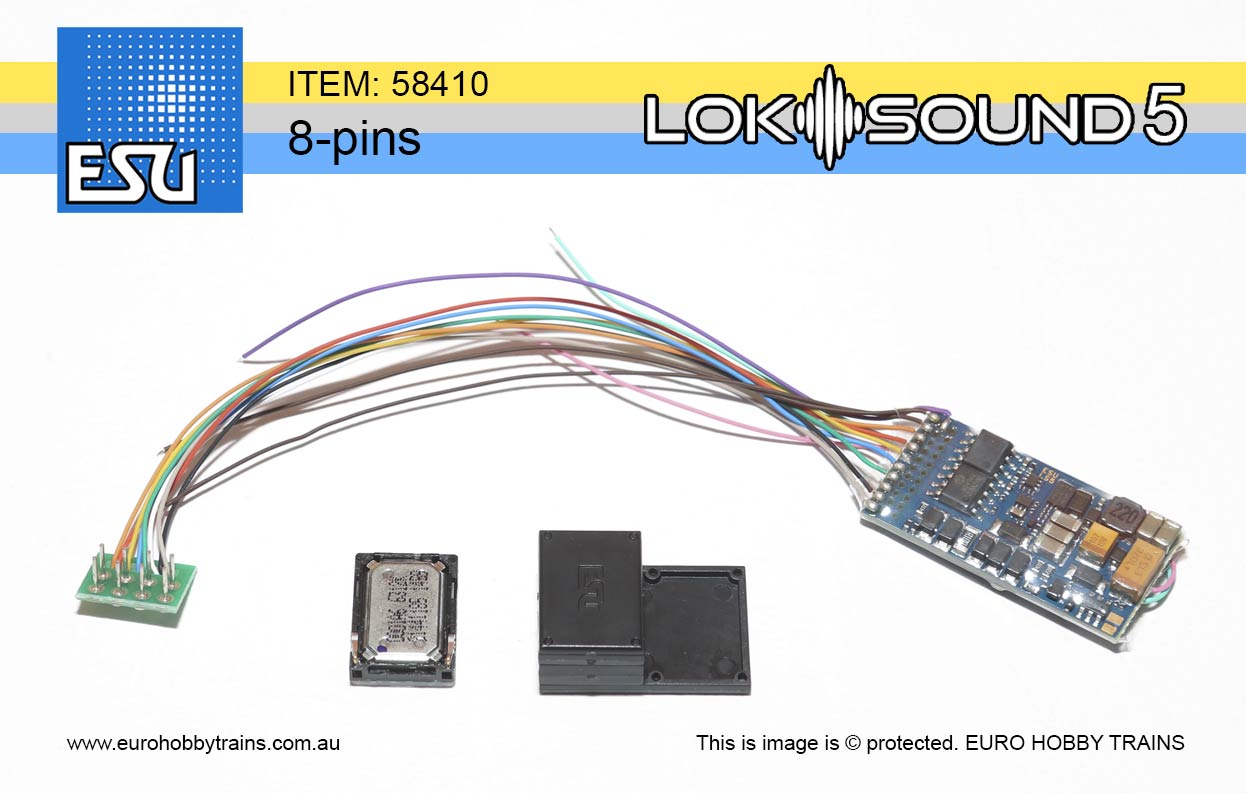

ESU LokSound 5 Sound decoder, 8-pins NEM652, with Speaker 11x15mm item 58410

LokSound 5

– Universal sound decoder for the gauge HO and track 0
– Motor current 1.5A
– Depending on the interface up to 12 amplified function outputs for special functions (total: up to 15 outputs)
– 10 sound channels can be played simultaneously
– Includes a 11×15 mm “sugar cube” loudspeakers and a baffle set
– PowerPack storage capacitor can be connected
– Dimensions: 30 mm x 15.5 mm, height depends on interface

Technical specifications

– Operation under DCC with RailComPlus®, M4, Motorola® and Selectrix®
– 32 functions switchable (depending on the control panel)
– 32-bit processor
– Digital class “D” amplifier with up to 3 W power (LokSound 5 XL: 13 W)
– Each channel in 16-bit resolution and 31250 kHz sample rate
– Noise memory with 128 Mbit capacity
– Motor control with 50 kHz clock frequency
– RC servos and Susi modules can be controlled
– 3 new, individually adjustable brake controllers
– Two-stage heavy load simulation
– Can be updated with a ESU-LokProgrammer
