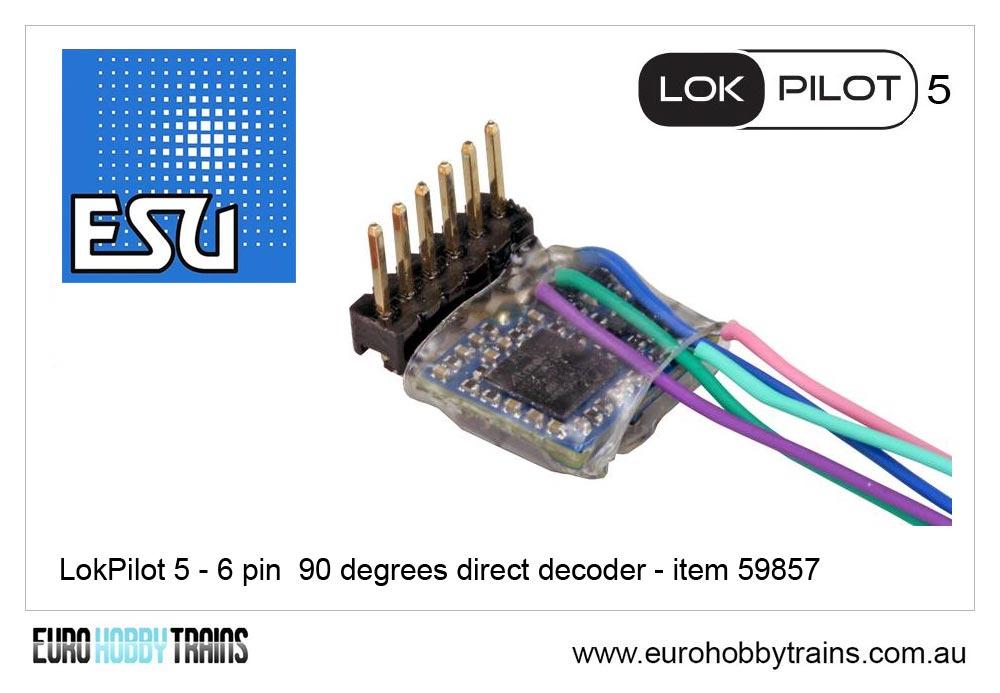

ESU LokPilot 5 micro DCC 6-pin direct 90 degrees decoder - item 59857

$55.00 AUD
$55.00 AUD
-0%
Brand: Euro Hobby Trains

In stock

Guaranteed safe checkout

    Details

    Features

    • Suitable from N and TT scale
    • 4 amplified function outputs with 180mA output current each and two logic level outputs.
    • The brightness of each output can be adjusted separately.
    • A PowerPack can be connected to the LokPilot 5 Fx micro and LokPilot 5 Fx micro DCC to bridge dirty rail sections.
    • Outputs are protected against overload.
    • Dimensions: 8.0mm x 7.0mm and a thickness of only 2.4mm (on the capacitor: 2.9 mm)

    The motor control of the LokPilot 5 micro DCC has been fundamentally improved again. A variable adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors- The typical “hum” is a thing of the past. The load control now has up to 10 CVs  which can be adjusted for difficult cases. The unique “Autotune” function enables the automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to .75A of motor current. Enough juice for most motors.



    Categories: Decoders, Digital (DCC), ESU DCC, N Scale Decoders

    Warrenty: All our products are brand new (excluding items listed in the USED/OLD STOCK category). Each product comes with a minimum of 1 year of manufacturer's warranty with some manufacturers offering 2+ years warranty. If this product is currently OUT OF STOCK, we may be able to order it for you.
